Aeby / Landry / Bellenot Ancre 19''' Savonnette Type 5

2 views / New

19”’ | Hand Wind | Swiss Lever | Small Seconds |

Remarks:

The company Aeby & Landry was founded in 1873. After the death of the founder Aeby, the company was split into two different companies by his sons: Léo Aeby & Co in 1888 and Aeby, Bellenot & Co in 1889. Both claimed to be the legal successors of Aeby & Landry.
It is not clear, which of these three companies actually produced the movements shown here! The registration of the logo with a cock and the words TRADE MARK was transferred from Aeby & Landry to Aeby & Co in 1888 and then from Aeby & Co to Aeby & Bellenot in 1889.
Base movement very likely from FHF
Several different similar types of this movement are known. The type number given here is not an official caliber designation but is used here to distinguish them:
- Cylindre 16”’ Type 1: Cylinder escapement, barrel bridge not separated, no seconds
- Cylindre 18”’ Lépine Type 2: Cylinder escapement, barrel bridge separated, small seconds, open face movement (Lépine)
- Ancre 19”’ Savonnette Type 3: Swiss lever escapement, barrel bridge separated, small seconds, hunter movement (Savonnette)
- Ancre 19”’ Savonnette Type 4: Swiss lever escapement, barrel bridge not separated, small seconds, hunter movement (Savonnette)
- Ancre 19”’ Savonnette Type 5: Swiss lever escapement, barrel bridge not separated, small seconds, hunter movement (Savonnette)

Listing ID: 20537
Manufacturer / Brand: Aeby, Landry, Bellenot

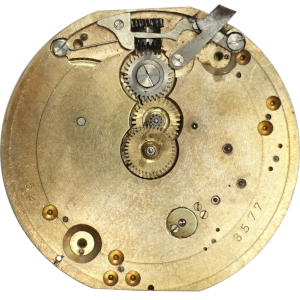

Caliber: Ancre 19''' Savonnette Type 5
Size in French Lignes: 19'''
Size range mm largest diameter: > 40 mm
Shape: Round
Winding: Manual (Crown)
Hands Setting: Crown with pin/pusher
Seconds Hand: None
Escapement: Lever (Swiss, English, Glashütte)
Date, Day, Month...: None
Jewels: 15
Setting Lever Screw/Pin Position: Center
Balance Position: Bottom (120 - 240°)
Shock Protection: None
Beats per hour: 18,000
Balance Type: Bimetallic screw balance with Breguet hairspring
Power Reserve: Unknown
Production Period: Unknown, probably 1880+
Country: Switzerland
Identification: Design of bridge side typical for Aeby, Landry, Bellenot. Some movements marked with their logo, a cock and TRADE MARK. This logo was registered by Aeby & Landry in 1881.
