19”’ | Hand Wind | Swiss Lever | Small Seconds |

Remarks:

• Cam disk fine regulator
• Screwed-in jewel settings (Chatons)
• Movement variants:
  • Revue 30-7 Lépine, height 30/12”’ (5.6 mm)
  • Revue 30-7 Savonnette, height 30/12”’ (5.6 mm)
  • Revue 31-7 Lépine, height 36/12”’ (6.7 mm)
  • Revue 31-7 Savonnette, height 36/12”’ (6.7 mm)
• Movement was already registered in 1909 by Thommen (Revue) as model no. 7 in the Swiss Official Gazette of Commerce (see extra picture). Model no. 7 was not an official movement designation, but was used to register the design.

• Listing ID: 17494
• Manufacturer / Brand: Revue

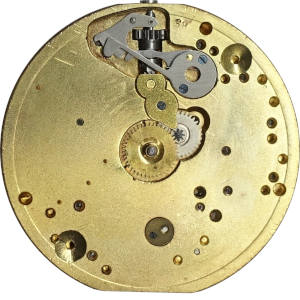

• Caliber: 30-7 Savonnette
• Size in French Lignes: 19'''
• Size range mm largest diameter: > 40 mm
• Shape: Round
• Winding: Manual (Crown)
• Hands Setting: Crown
• Seconds Hand: Small seconds
• Escapement: Lever (Swiss, English, Glashütte)
• Date, Day, Month...: None
• Jewels: 16
• Setting Lever Screw/Pin Position: Right
• Balance Position: Bottom (120 - 240°)
• Shock Protection: None
• Beats per hour: 18,000
• Balance Type: Monometallic screw balance with Breguet hairspring
• Power Reserve: Unknown
• Production Period: Unknown
• Country: Switzerland
• Identification: Lépine variant listed in the Classification Horlogère from 1939.
• Contributor ©: Uhrforum.de member Badener (Andreas Kelz)
