11 1/2”’ | Hand Wind | Swiss Lever | Direct Sweeping Seconds |

Remarks:

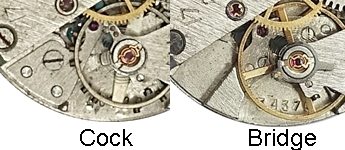

• The 2609.1 is available with a pallet fork cock and a pallet for bridge
• Movement family:
  • Raketa 2609: 16 jewels
  • Raketa 2609.1: 17 jewels
  • Raketa 2609A, 2609A.1, 2609B: 21 jewels, modifications unknown

• Listing ID: 10446
• Manufacturer / Brand: Raketa
• Caliber: 2609.1
• Size in French Lignes: 11 1/2'''
• Size range mm largest diameter: 22 - 31 mm
• Shape: Round
• Winding: Manual (Crown)
• Hands Setting: Crown
• Seconds Hand: Sweeping seconds (central seconds)
• Escapement: Lever (Swiss, English, Glashütte)
• Date, Day, Month...: None
• Jewels: 17
• Setting Lever Screw/Pin Position: Right
• Balance Position: Bottom (120 - 240°)
• Shock Protection: Poljot
• Beats per hour: 18,000
• Balance Type: Monometallic screw balance
• Power Reserve: Approx. 40 hours
• Production Period: Unknown, probably around 1965
• Identification: Original datasheet available.
• External Link 2: https://urss.watch/2021/07/29/raketa-2609-2609-1-2609a-2609a-1-2609b/
• Country: Russia
• Contributor ©: Uhrforum.de member Badener (Andreas Kelz)
