10 1/2”’ | Hand Wind | Pin Lever | Small Seconds |

Remarks:

• Rocking bar winding
• Click on the dial side
• Many similar movements 48/xx with minor (unknown) modifications

• Listing ID: 21032
• Manufacturer / Brand: Kienzle
• Caliber: 48/8
• Size in French Lignes: 10 1/2'''
• Size range mm largest diameter: 22 - 31 mm
• Shape: Round
• Winding: Manual (Crown)
• Hands Setting: Crown
• Seconds Hand: Small seconds
• Escapement: Pin Lever
• Date, Day, Month...: None
• Jewels: 8
• Setting Lever Screw/Pin Position: Left
• Balance Position: Bottom (120 - 240°)
• Shock Protection: None
• Beats per hour: 18,000
• Balance Type: Gold-plated nickel?
• Power Reserve: Approx. 40 hours
• Production Period: Unknown, probably around 1957
• Country: Germany

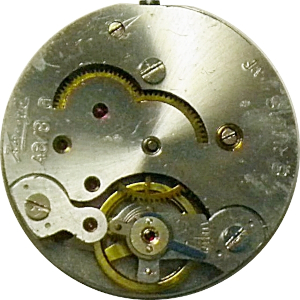

• Identification: Movement marked with Kienzle 48/8. Listed in the Flume K1 catalog in the part from 1957.
• Contributor ©: Uhrforum.de member buchenhain
• External Link: https://uhrforum.de/threads/identifizierte-uhrwerke-die-weder-bei-ranfft-lorenz-noch-im-watch-wiki-zu-finden-sind.86322/page-79#post-10932274
