22”’ | Hand Wind | Swiss Lever | Small Seconds | Quarter Repeater | Chronograph |

Remarks:

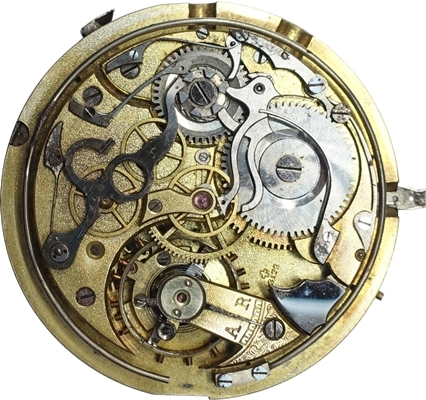

• Quarter-hour repeater with two hammers on gongs (one is missing on the movement shown)
• Column-wheel chronograph (central stop second)
• Chrono cadrature on the bridge side, repeater parts on the dial side
• The movement is marked with two Swiss patent numbers
  • 334 on the dial side
    CH334 was granted to C. Barbezat-Baillot in 1889, and cancelled in 1904.
  • 12172 on the bridge side
    CH12172 was granted to Stolz Frères in 1896, and cancelled in 1901.
  • Probably Invicta used parts of these patents after they were cancelled, or the have licenses their usage before
• Identification as Invicta:
  • Several pocket watches signed Invicta have repeater movements marked with the two patent numbers 334 and 12172
  • So far I could not find movements with these two patent numbers in pocket watches from other manufacturers

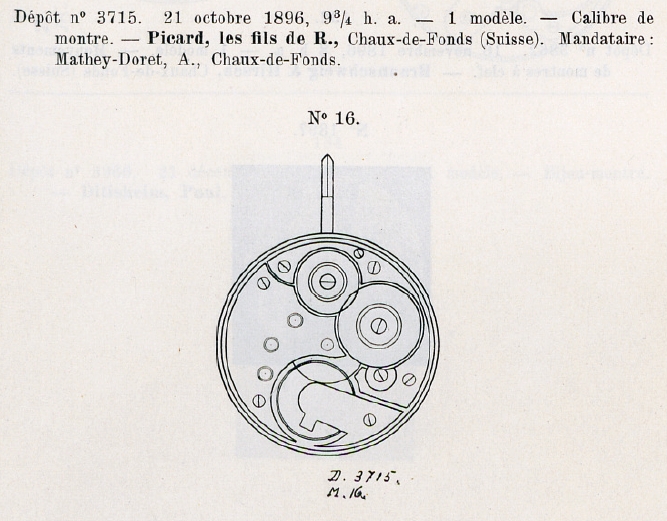

  • The base movement was registered by Picard (= Invicta) in 1896 in the Swiss Official Gazette of Commerce as model no. 16 -> see extra picture

• Listing ID: 13229
• Manufacturer / Brand: Invicta
• Caliber: Répétition à quarts + Chronographe 22'''
• Size in French Lignes: 22'''
• Size range mm largest diameter: > 40 mm
• Shape: Round
• Winding: Manual (Crown)
• Hands Setting: Crown with pin/pusher
• Seconds Hand: Small seconds
• Escapement: Lever (Swiss, English, Glashütte)
• Date, Day, Month...: None
• Other Functions: Repeater + Chronograph
• Jewels: 16?
• Setting Lever Screw/Pin Position: Center
• Balance Position: Bottom (120 - 240°)
• Shock Protection: None
• Beats per hour: 18,000
• Balance Type: Bimetallic screw balance with Breguet hairspring
• Power Reserve: Unknwon
• Production Period: Unknwon, probably around 1900
• Country: Switzerland
• Identification: See remarks above.
• Contributor ©: Uhrforum.de member Badener (Andreas Kelz)
