19”’ | Hand Wind | Swiss Lever | Small Seconds |

Remarks:

• Savonnette = hunter movement
• Hahn registered another very similar model no. 63 in 1905

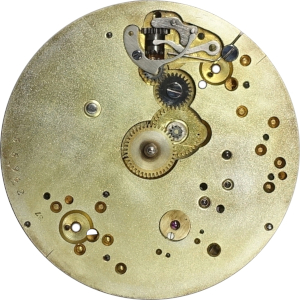

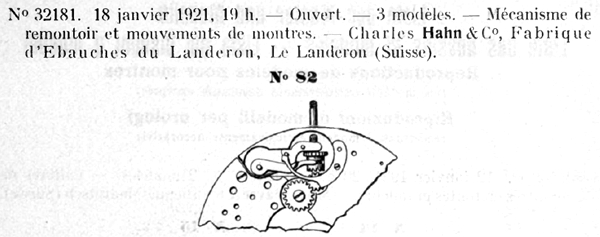

• The specific form of the setting lever spring of this movement was registered by Hahn only in 1921. So the movement shown here seem to be a late variant of model no. 63

• Listing ID: 20561
• Manufacturer / Brand: Hahn
• Caliber: Model No. 63 1910 Savonnette
• Size in French Lignes: 19'''
• Size range mm largest diameter: > 40 mm
• Shape: Round
• Winding: Manual (Crown)
• Hands Setting: Crown
• Seconds Hand: Small seconds
• Escapement: Lever (Swiss, English, Glashütte)
• Date, Day, Month...: None
• Jewels: 16
• Setting Lever Screw/Pin Position: Left
• Balance Position: Bottom (120 - 240°)
• Shock Protection: None
• Beats per hour: 18,000
• Balance Type: Bimetallic screw balance with Breguet hairspring
• Power Reserve: Unknown
• Production Period: Probably around 1921 (see remark above)
• Country: Switzerland

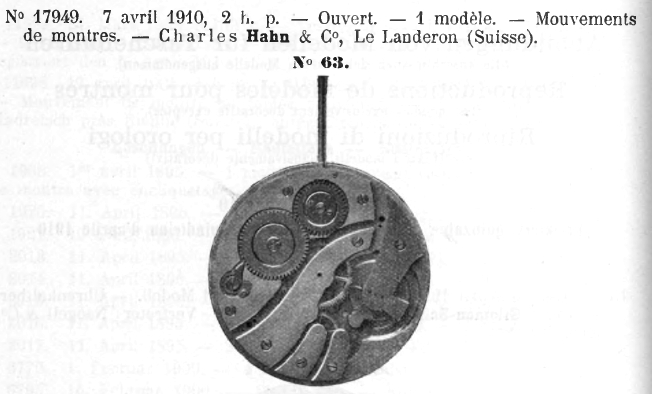

• Identification: Lépine (open face) variant registered by Hahn on 07.04.1910 in the Swiss Official Gazette of Commerce as model No. 63. Model No. 63 is not an official caliber designation, but was used to register the design.
• Contributor ©: Uhrforum.de member Badener (Andreas Kelz)
